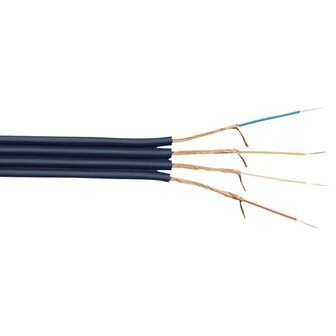

DAP AV-84 4-way audio/video cable asymmetrical 75 Ohm, 100 m on roll

DAP AV-84 4-way audio/video cable asymmetrical 75 Ohm, 100 m on roll. New product. (D9403).


4-Way Unbalanced Audio/Video Cable 75 Ohm 100 m (on a spool)

Specifications:
Cable Length: 100 m
Conductor Resistance: 80 Ω/km (128.74 Ω/mile)
Conductor Capacitance: 160 pF/m (48.77 pF/ft)
Inner Conductor/Shield Capacitance: 160 pF/m (48.77 pF/ft)
Maximum Conductor Thickness: 0.12 mm² (0.0002 in²)
Cable Outer Diameter: 4 mm (0.158")
Outer Insulation Type: PVC
Material: Copper
Color: Dark Blue
1st Shield: Twisted
Shield Resistance: 50 Ω/km (80.47 Ω/mile)
Conductors: 8
