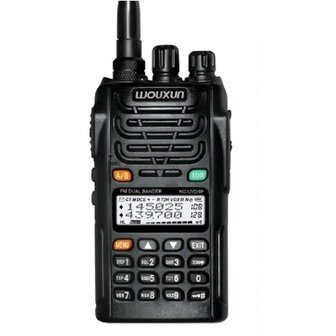

The Wouxun KG-UVD1P is a dual-band transceiver suitable for 144-146 / 430-440 MHz. The KG-UVD1P comes with a 1700 mAh Li-ion battery.
Frequency range: TX/RX: 144-146 / 430-440 MHz. RX: 76-108 MHz (FM)
Specifications:
- VOX function
- DTMF decoding and encoding
- Emergency function (SOS)
- Flashlight
- Priority channel scan
- High/low power selection
- Voice guide: English
- Operating mode: U-V, V-U, V-V, U-U freely selectable
- Band: VHF TX-UHF RX or UHF TX-VHF RX freely selectable
- Burst tone at 1750 Hz
- QT/DQT decoding, encoding, and scanning
- DCS codes: 105 groups
- CTCSS codes: 50 groups
- Computer programming
- FM radio
- Output power (watts): VHF: 1-5 watts / UHF: 1-4 watts
- Operating mode: F3E (FM)
- Antenna impedance: 50 ohms
- Frequency stability: ±2.5 ppm
- Max. frequency deviation: Wide: ±5 kHz / Narrow: ≤±2.5 kHz
- Modulation distortion: ≤5%
- Dimensions:
- Length: 58 mm
- Height: 105 mm
- Width: 390 mm
- Weight: 250 grams
- Antenna connection: SMA male
- Battery: 1700 mAh Li-Ion
EU sales only.
The buyer is responsible for the legal requirements of his own country.
A license may be required to use this device.
